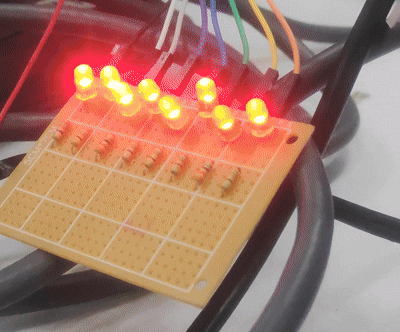

I designed my custom lights pattern with 8 LEDs. Once a desired pattern was chosen, I mapped the light patterns into binary. Where each bit represents an ON or OFF active high state on its corresponding LED. The computer runs a program written in 8086 Assembly that outputs signals every delay time to the output port via the DB25, which then the signals are transmitted to the PCB with LEDs simultaneously.
